Single Head Corner Insertion Machine

Model: V-SH-CIM

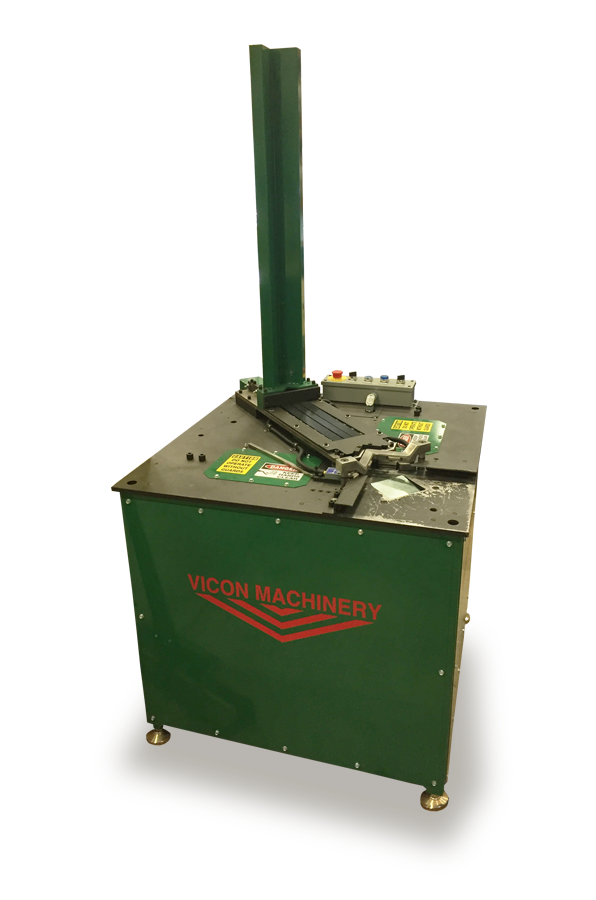

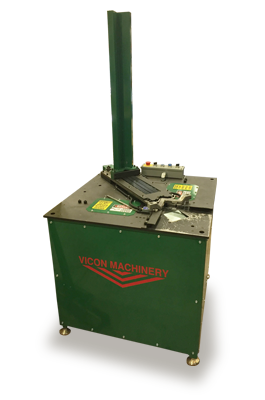

Vicon Single Head Corner Insertion Machine

The Vicon Single Head Corner Insertion Machine features a heavy duty frame structure designed for single corner insertion of flanged duct fittings. Machine utilizes various brands of TDX™, TDF™, TDC™ stackable corners. Standard tooling designed for 16-26 gauge duct. Interchangeable tooling available, with quick changeover for various flange types. 100 PSI air pressure required for 16 gauge processing. The Table Top or In Ground/Pit Placement design allows customizable operator working height.



Features & Benefits
  • Standard tooling designed for 16-26 gauge duct
  • Table Top or In Ground Design for single corner insertion of flanged duct fittings
  • Heavy Duty Frame Structure Design
  • Machine designed to utilize various brands of stackable corners that are designed for automatic corner inserting machines
  • Interchangeable tooling available for various flange types, if required
  • 100 PSI air pressure required for 16 gauge processing
  • Tooling designed for quick changeover
  • Voltage: 110/1/60Hz
  • Pit Size, if requested, per Engineering drawing
  • Manual or Auto Push Button controls
  • Duct Connector types TDX™, TDF™, TDC™
